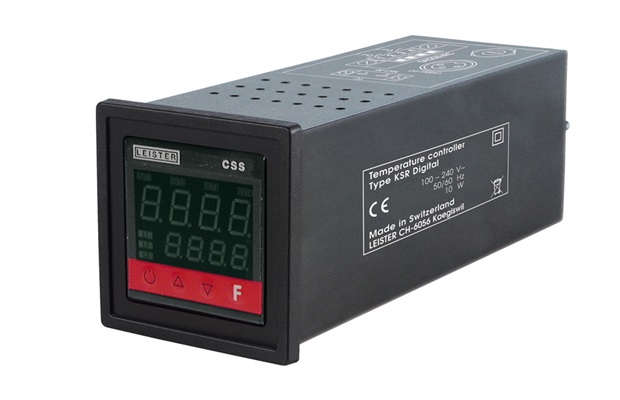

KSR DIGITAL

Leister temperature regulators allow the air temperature of air heaters and hot-air blowers to be precisely regulated. These regulators are perfectly matched to our Leister devices and facilitate easy and fast installation. They include a digital display for target/actual temperature and two freely programmable alarm outputs.
Specification
  KSR DIGITAL
Article No.:   111.164
Attribute Unit Value
Suitable for Leister air heaters   LE 5000/10000 HT, LE 5000/10000 DF, LE 5000/10000 DF-R
Regulation type   PID
Ready to use with preconfigured parameter set
Configuration with PC and programming cable
Accuracy   > 0.2 % of scale value at 25 °C
Switchover C° / F° Configurable via keypad
Temperature sensor / input   Type K /socket
Alarm output   2 independently configurable alarms Output at 2 floating relay contacts, 2 mm receptacle
Connection to air heater   Socket, compatible with KSR models
Voltage V~ 100 – 240 VAC, max. 8 VA
Mains connection lead   3 m, with Euro plug
Mechanics   Regulator built into housing, ready to operate, can also be integrated into the front panel, with cut-out 67 × 67 mm
Size (L × W × H) mm 175 × 72 × 72
Weight kg 0.50
Conformity mark
Protection class II
