LE MINI

  • Thermoswitch for device protection

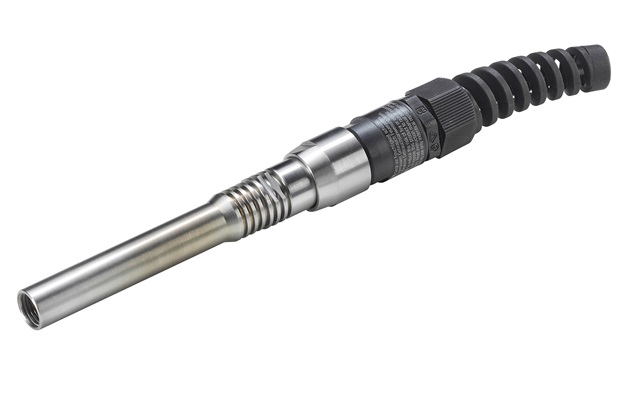

The world’s smallest air heater with an integrated temperature probe. Especially suited for applications in which heat is concentrated to a point. It is simple to incorporate into the tightest spaces. LE MINI operates with compressed air at a pressure of 200 kPa. Model versions are available with or without an integrated sensor. The SENSOR KIT add-on box offers a plug’n play solution with its integrated power electronics and temperature regulator.
Specification
  LE MINI - 230 V /
400 W
LE MINI - 230 V /
800 W
Article No.:   115.682 115.369
Attribute Unit Value Value
Voltage V~ 230 230
Power W 400 800
Max. air outlet temperature °C 600 750
Min. air volume (20°C) l/min 25 30
Max. air inlet temperature °C 60 60
Max. ambient temperature °C 60 60
Max. supply air pressure kPa 200 200
Weight kg 0,12 0,15
Size (L × ∅) mm 200 × 25 308 × 25
Conformity mark
Approval mark
Protection class II
